Quick Overview
48V 13S 30A BMS battery with mini size; it is suitable for Dengfu E22 /E23 /E10 batteries and some of the Dorado batteries.
The BMS has ON/OFF switch if your battery has no switch, just short circuit the two switch wires.
- Description
-
Details

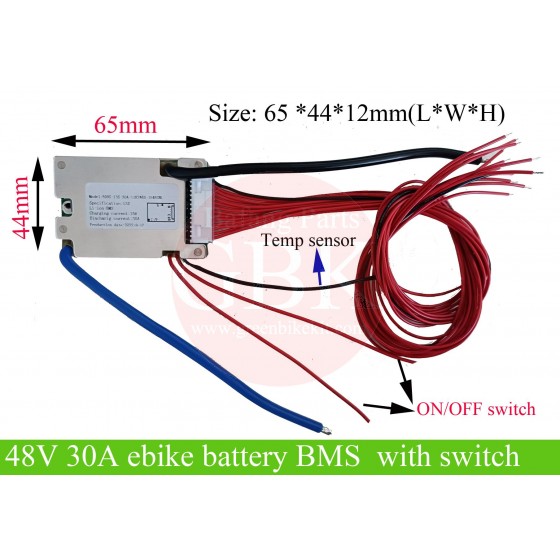

13S 30A BMS for 48V battery with switch
1. Charging voltage: DC54.6V (CC/CV);
2. Single cell self-consumption current: ≤60μA;
3. Max continuous charging current: 30A;
4. Max continuous discharging current: 15A;
5. Overcharge detecting voltage: 4.25±0.05V;
6. Overcharge detecting delay time: 0.5S-2S;
7. Overcharge recover voltage: 4.19±0.1V;
8. Overdischarge detecting voltage: 2.8±0.8V;
9. Recover: recover by Cutoff load;
10. Short circuit detecting: Shortcircuit externally;
11. Short circuit detecting delay time: 200-800μs;
12. Short circuit recover by by Cutoff load;
13. Internal resistance: ≤50mΩ - Additional Info
-
Additional Information
dimension 65x44x12mm net weight 0.1kg Manufacturer No - Reviews
-
