Quick Overview
Smart lihtium battery management system/PCM for 12S, 13S, 14S or 15S Lithium LiFePO4, NiCoMn, LiMn2O4 etc diy battery packs. You can program the intelligent BMS/lithium battery on your computer and view all the parameters via your mobile(The Android APP can slightly modify parameter for the BMS while the IOS APP can only read datas and cannot modify data from mobile). Our ltihium battery BMS has been upgraded with alloy plates for better heat radiation, but the connection of the PCM has no changed. We also provide smart BMS with larger serial from 7S~10S, 11S~15S(current less than 60A), 16S~ 20S PCM and 20S~ 30S BMS with software and mobile app control.
The PCM is with blanace, standard UART COM, Short circuit protection, temperature(NTC) protection, overcharge protection, overdischarge protection, over current protection and under voltage protection etc. Some Smart BMSs are available for RS232 and RS485 COM port, please email us if you need.
This smart BMS use the same COM for charging and discharging which means the max charging current could be larger. If you need a battery charger for your diy packs, we also provide customized lihtium battery chargers.
If you need the PCM communication software, app or connection diagram, please download from here: intelligent battery management specification
- Description
-
Details

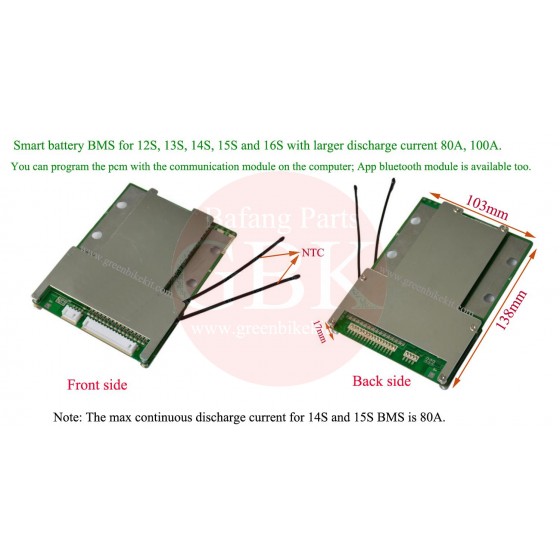

Smart lithium battery PCM with balance for 12S, 13S, 14S or 15S 80A/100A. It can program by software on the company or bluetooth app.
Li-ion/LiFePO4 programmable BMS 12S-15S, you can use it for 12S, 13S, 14S or 15S Li-ion or LiFePO4 batteries. You can set the parameters via company and yo can also check parameters on your phone.
Function Testing item Testing condition Parameter Unit Min Suggested Max Overcharge Overcharge protection voltage charging 4.22 4.25 4.28 V Overcharge protection delay time / 500 1000 1500 mS Overcharge protecting release voltage / 4.1 4.15 4.2 V Balancing BalancingVoltage difference / 4.17 4.2 4.23 V Balancing start voltage / 30 mV Balancing current / 50 60 mA Charging current Charging current / 15 A Over-temp for charging High Temp protection for charging / 62 65 68 ℃ Recover from high temp / 52 55 58 ℃ Low Temp protection for charging / -12 -10 -7 ℃ Recover from low temp / -3 0 3 ℃ Over discharge Over-discharge protection voltage disharging 2.42 2.5 2.58 V Over-discharge protection delay time / 500 1000 1500 mS Over-discharge protection release voltage / 2.7 2.8 2.9 V Discharge current Max continuous discharging current / 30 A Over discharging protection Over discharging protection current / 55 60 65 A Over discharging recover Over discharging recover / 32 S Short circuit Short-circuit protection / 150 200 250 A Short-circuit protection delay time / 200 400 800 mS Short-circuit protection recover / Disconnect load for 32seconds Over-temp for discharging High Temp protection for discharging / 67 70 73 ℃ Recover from high temp / 57 60 63 ℃ Low Temp protection for discharging / -12 -10 -7 ℃ Recover from low temp / -3 0 3 ℃ impedance impedance for loop current / 10 mR Internal power consumption Normal condition with communication module 20 mA Sleeping 150 200 Ua Sleeping delay time 8 10 S If you need the software, app, manaul and diagram for the smart bms, please download from our website.
- Additional Info
-
Additional Information
dimension 138x103x17mm net weight 0.5kg Manufacturer GBK - Reviews
-
